Advanced Hot Runner Preform mold for Efficient Bottling Solutions

In modern packaging and beverage production, the phrase “Advanced Hot Runner Preform Mold for Efficient Bottling Solutions” captures the core of what manufacturers truly need: precision, speed, efficiency, and consistent quality at high volumes. As global demand for bottled products continues to grow—from drinking water and carbonated soft drinks to edible oils, household chemicals, pharmaceuticals, and personal care items—producers are under pressure to optimize every stage of their bottling operations. At the center of this optimization lies the preform molding process, and specifically, the design and performance of advanced hot runner molds.

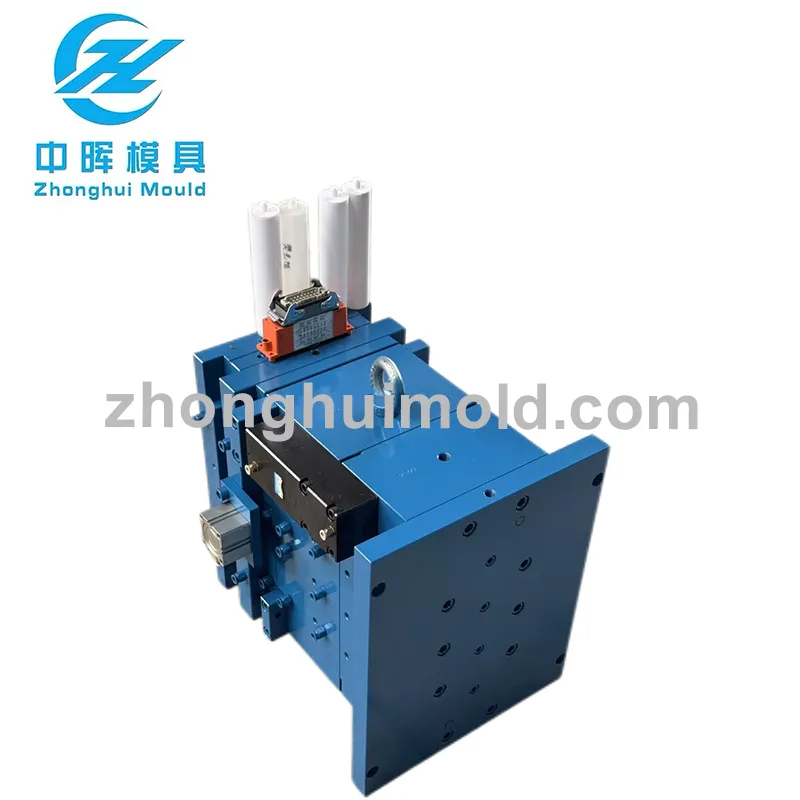

An advanced hot runner preform mold is not simply a metal tool that shapes molten PET into preforms. It is an engineered system designed to deliver uniform melt flow, stable temperatures, minimal material waste, and ultra-fast cycle times. These capabilities translate directly into efficient bottling solutions by lowering energy consumption, reducing scrap rates, improving bottle performance, and supporting high output around the clock.

Key Role of Preforms in Efficient Bottling

Preforms are the intermediate products that are later blown into finished bottles. The quality of each preform has a direct impact on:

- Bottle wall thickness distribution
- Mechanical strength and top-load resistance
- Clarity, gloss, and visual appearance
- Barrier properties and product shelf life
- Consistency of bottle dimensions for caps, labels, and filling lines

When the preform is produced using an advanced hot runner preform mold, these properties become more stable and predictable. This consistency reduces downtime on blow molding and filling lines, leading to overall more efficient bottling solutions across the entire plant.

Advantages of Advanced Hot Runner Systems

The hot runner system is the central feature that differentiates a basic mold from an advanced hot runner preform mold for efficient bottling solutions. In a cold runner mold, significant amounts of material are wasted in runners that must be recycled or discarded. A hot runner system, by contrast, keeps the plastic molten and delivers it to each cavity without creating solidified runners.

Key advantages include:

1. Material Savings
  By eliminating cold runners, nearly all of the molten PET goes directly into preforms. The result is:
  - Reduced raw material usage per cycle
  - Lower grinding and reprocessing requirements
  - Less thermal degradation from repeated reheating of regrind

2. Cycle Time Reduction
  Advanced hot runners are engineered to optimize flow channels and temperature control. This leads to:
  - Faster filling of cavities
  - Reduced cooling time due to more uniform wall thickness and controlled crystallization
  - Shorter overall cycle times and higher output per molding machine

3. Improved Preform Quality
  Uniform heating and balanced flow channels contribute to:
  - Consistent preform weight and dimensions
  - Minimized sink marks, streaks, and color variations
  - Better gate quality and reduced gate vestige

4. Energy Efficiency
  Without the need to cool and re-melt runner scrap, energy consumption per bottle is significantly lower. Combined with optimized thermal insulation and precise temperature control, this makes an advanced hot runner preform mold a cornerstone of energy-efficient bottling solutions.

Design Considerations for High-Performance Preform Molds

Developing an advanced hot runner preform mold for efficient bottling solutions requires attention to multiple engineering details:

1. Cavity Layout and Mold Size

The number of cavities—such as 24, 48, 72, 96, or more—directly affects output. Higher cavity counts increase productivity but demand:

- Perfectly balanced melt distribution
- Rigid support plates to maintain alignment
- Robust cooling circuits for each cavity

Uniformity across all cavities is crucial; even minor variations can lead to uneven preform weights, color differences, or increased scrap.

2. Hot Runner Manifold and Nozzle Design

The manifold is the heart of the hot runner system. An advanced design typically includes:

- Balanced Flow Channels: Symmetrical design ensures equal pressure and flow length to each cavity, so every preform fills identically.
- Optimized Channel Diameter: Tailored to PET’s rheology to minimize shear, pressure drop, and temperature gradients.
- Specialized Nozzles and Tips: Valve-gated or open-gate designs with precise control over gate location and geometry. This improves appearance and reduces gate whitening or stress.

Valve gating, in particular, can enhance efficiency by:

- Allowing precise control of filling sequence
- Reducing drool and stringing at the gate
- Improving gate aesthetics and minimizing post-processing

3. Temperature Control and Thermal Balance

To produce high-quality pet preforms, maintaining a narrow temperature window is essential. Advanced hot runner systems typically incorporate:

- Multiple independently controlled heating zones
- High-accuracy thermocouples near critical points
- Well-insulated manifolds to reduce heat loss
- Optimized heater placement to avoid hot spots and dead zones

Stable thermal conditions ensure consistent melt viscosity, which translates into uniform cavity filling, reduced internal stresses, and improved clarity.

4. Cooling System Optimization

Efficient cooling is crucial for reducing cycle time while safeguarding part quality. Key elements include:

- High-efficiency cooling channels in core and cavity inserts
- Turbulent flow water circuits designed to maximize heat transfer
- Uniform cooling around threads, neck finishes, and body sections
- Temperature-controlled water supply to avoid condensation and maintain stability

An advanced hot runner preform mold for efficient bottling solutions integrates cooling design from the earliest concept stages, rather than treating it as an afterthought. Proper cooling means faster cycles without warpage, ovality, or substandard mechanical performance.

5. Mold Steel and Surface Treatment

High-performance molds rely on premium materials:

- Hardened tool steels for wear resistance in cores, cavities, and neck rings
- Corrosion-resistant alloys where water or aggressive cleaners are present
- Surface treatments such as nitriding or hard coatings to improve durability, demolding, and scratch resistance

With PET, surface finish is critical for optical clarity and easy release. Fine polishing and controlled texturing contribute to both bottle aesthetics and process reliability.

Impact on Overall Bottling Efficiency

Implementing an advanced hot runner preform mold for efficient bottling solutions affects far more than just the Injection Molding cell. The benefits extend throughout the entire production chain:

1. Blow Molding Stability
  Consistent preform wall thickness and straightness lead to:
  - Uniform bottle inflation
  - Less scrap due to off-spec bottle dimensions
  - Fewer adjustments required on blow molding machines

2. Filling Line Performance
  Bottles that are dimensionally stable and defect-free:
  - Move smoothly through conveyors and filling heads
  - Reduce jamming and unplanned stops
  - Support higher filling speeds and less spillage

3. Packaging and Logistics
  Stronger, more consistent bottles:
  - Stack better on pallets
  - Withstand transportation and handling
  - Reduce complaints and returns from distribution channels

By improving preform quality at the source, an advanced hot runner preform mold becomes a strategic enabler for efficient bottling solutions from raw material intake to final shipment.

Sustainability and Resource Optimization

Sustainability is now central to packaging decisions. The right preform mold technology supports environmental goals in several ways:

- Material Efficiency: Less waste through hot runner design and optimized preform geometry.
- Lightweighting: Precisely controlled molding allows thinner walls while maintaining strength, leading to lower resin consumption per bottle.
- Energy Reduction: Faster cycles and less regrind significantly reduce energy usage per unit.
- Recycled Content: Advanced mold and hot runner designs can be adapted to accommodate higher levels of recycled PET, with careful control of melt conditions to maintain quality.

These improvements help manufacturers meet regulatory requirements, brand sustainability targets, and consumer expectations for environmentally responsible packaging.

Flexibility for Different Markets and Products

An advanced hot runner preform mold for efficient bottling solutions is not limited to a single bottle design or application. Modern molds can be engineered for:

- Multiple neck finishes (e.g., water, CSD, hot-fill, wide-mouth)
- Different preform lengths and weights for various bottle sizes
- Compatibility with multiple resin grades and colors
- Fast changeover of key components such as neck rings and cores

This flexibility allows producers to respond quickly to market changes, new product launches, or regional preferences without replacing the entire mold system.

Maintenance, Reliability, and Long-Term Performance

Long-term efficiency depends on continuous, reliable operation. Advanced molds are designed for:

- Easy access to hot runner components for cleaning and repair
- Modular inserts that can be replaced without removing the entire mold
- Precision alignment features to maintain cavity registration
- Robust construction to withstand millions of cycles with minimal wear

Predictive and preventive maintenance strategies—supported by clear design, documentation, and diagnostic tools—help keep production stable and avoid expensive downtime. Because the mold is a major capital investment, durability and maintainability are crucial factors in overall efficiency.

Integration with Smart Manufacturing

Modern production environments increasingly rely on automation and data-driven control. Advanced hot runner preform molds can be integrated into such systems through:

- Sensors for temperature, pressure, and cycle monitoring
- Connection to plant-level monitoring software
- Alarms and diagnostics for early detection of issues such as heater failures or flow imbalances

By providing real-time insights into mold performance, manufacturers can optimize settings, stabilize production, and support continuous improvement initiatives.

Conclusion

“Advanced Hot Runner Preform Mold for Efficient Bottling Solutions” is more than a marketing phrase; it reflects a comprehensive approach to improving every aspect of bottle manufacturing. Through optimized hot runner design, precise temperature and cooling control, high-quality materials, and robust engineering, these molds deliver:

- Higher output and shorter cycles
- Lower material and energy consumption
- Superior and more consistent preform and bottle quality
- Greater flexibility and reliability across diverse bottling applications

As the packaging industry faces growing demands for efficiency, cost control, and sustainability, investing in advanced hot runner preform mold technology is one of the most direct and impactful ways to enhance overall bottling performance and remain competitive in a demanding global market.
