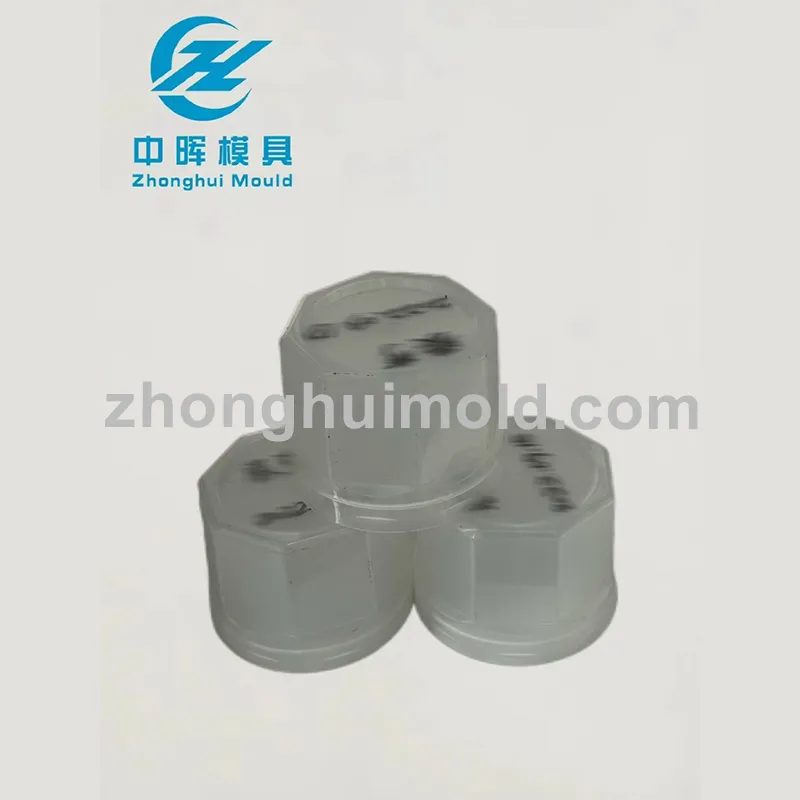

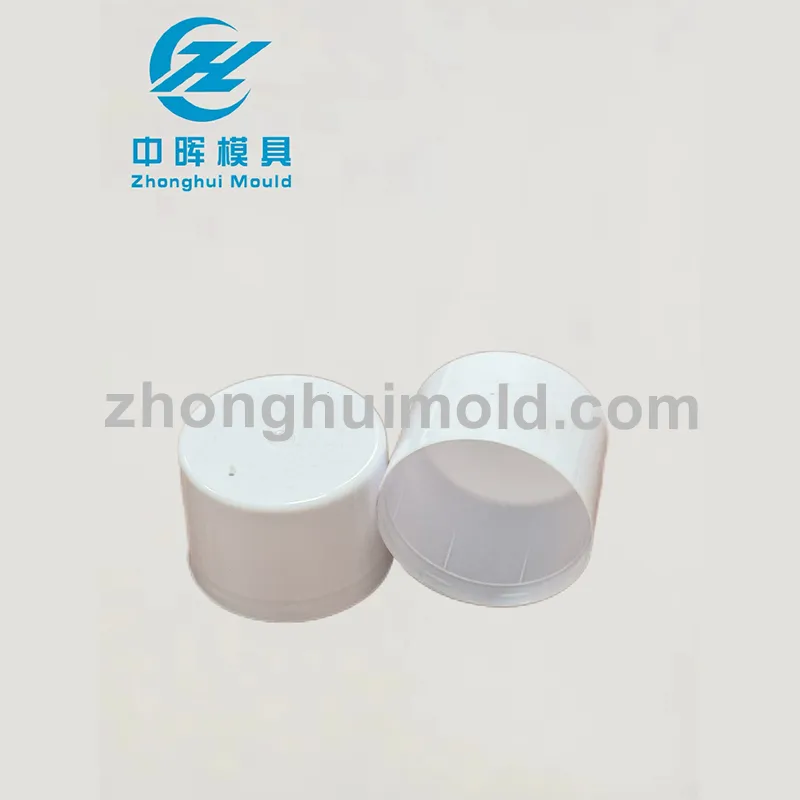

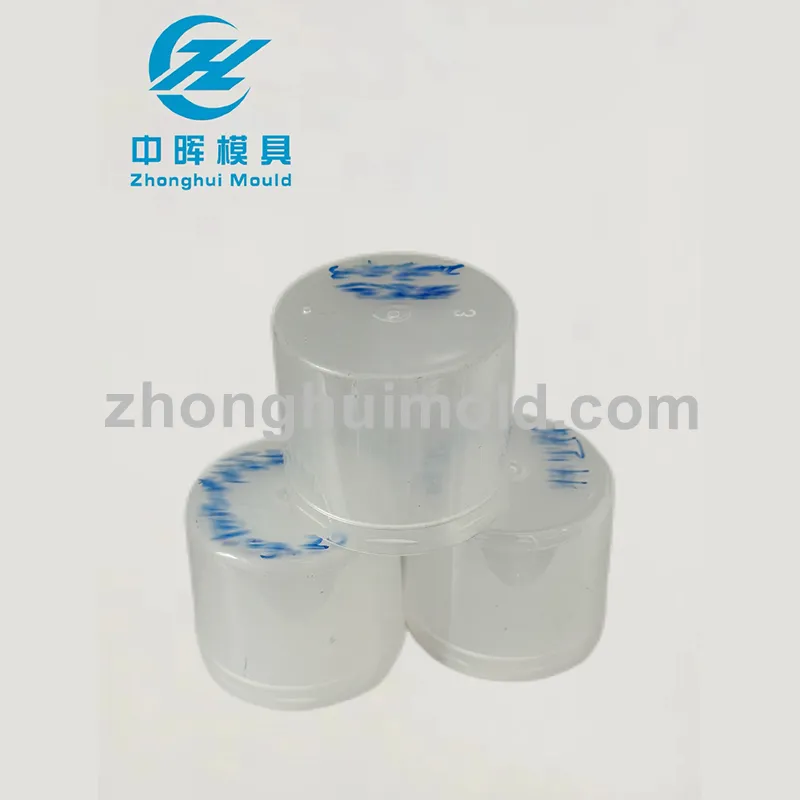

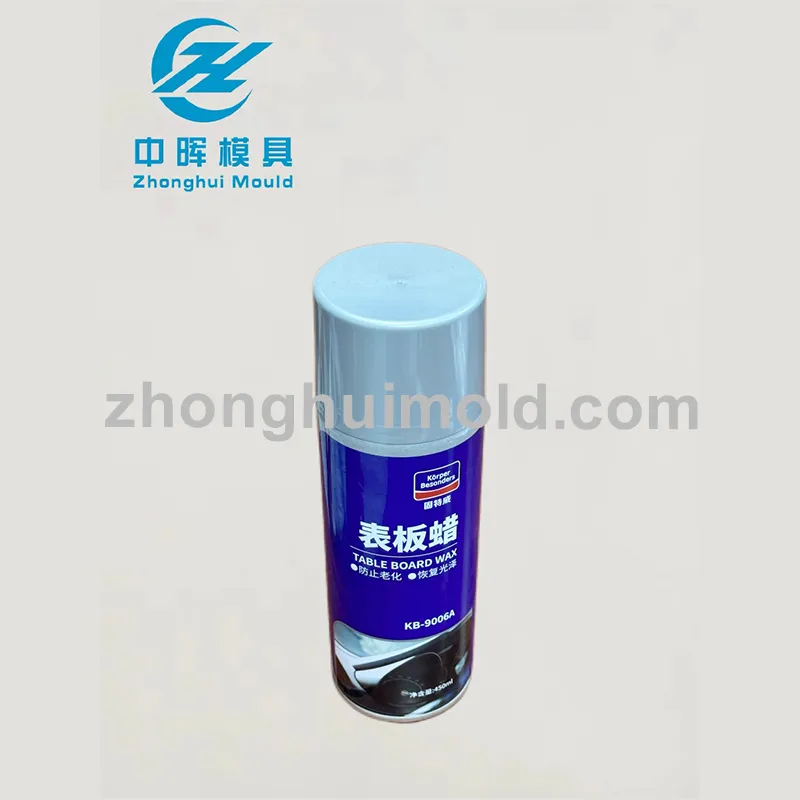

The Plastic Spray Can Cap Mould is a professional mold specially developed for the production of caps for aerosol hand spray paint cans. These caps have unique functional requirements—they must be compatible with the spray can’s valve structure, provide a secure seal to prevent paint leakage, and feature an ergonomic design that is non-slip and easy to press.

To accommodate the complex, irregular structure of the spray paint cap, the mold employs a multi-parting surface design. This advanced design allows for the precise molding of all critical features, including the pressure button, non-slip texture, nozzle interface, and valve connection points. Each parting surface is carefully engineered to ensure that the mold separates cleanly during demolding, leaving no visible seams or defects on the finished cap. The cavity is manufactured using a combination of electrical discharge machining (EDM) and precision grinding processes. EDM enables the creation of complex internal geometries with high accuracy, while precision grinding ensures the external surfaces meet the required dimensional tolerances of ±0.05mm.

The mold base material is P20S mold steel, which undergoes heat treatment to enhance its mechanical strength and durability. This ensures the mold can withstand the high-frequency opening and closing cycles required for large-scale production, maintaining its precision and performance over time. The gating system features a submarine gate design, where the gate is hidden on the inner surface of the cap. This not only maintains the cap’s external aesthetic appearance but also prevents any gate marks from interfering with the cap’s functionality, such as the sealing surface or the pressure button operation. The non-slip texture on the cap’s surface is precisely molded using textured cavity inserts, which are created using a chemical etching process. This process ensures that the texture is consistent across all caps, providing reliable grip even when the user’s hands are wet or covered in paint. By combining precise engineering with functional design, the Plastic Spray Can Cap mould delivers high-quality, reliable caps that meet the demanding requirements of aerosol spray paint packaging.
